This manual override allows the rider to shift gears without relying on the electric shift mechanism. To bypass the electric shift, the gear shifter must be disconnected from the electric shift motor. This can be done by accessing the motor beneath the seat and disconnecting the wiring harness. Once the electric shift is bypassed, the Rancher 420 can be operated using the manual foot shifter as intended.
Preparing for the Honda Rancher Electric Shift Bypass
Before you start the electric shift bypass on your Honda Rancher 420, you’ll need to gather the right tools and materials.
It’s also crucial to keep safety in mind, ensuring you’re taking all necessary precautions to avoid any mishaps.
Lastly, running through a pre-bypass checklist can help you make sure everything is in order before you begin the modification.
Tools and materials needed for the bypass
This preparation is crucial for bypassing electric shift hardware on Honda Rancher and overriding electric shift gadgetry on Honda ATV. Here’s what you’ll need:
- Double Throw Double Pole Momentary Switch: This is essential for manually controlling the shift motor.
- 30 Amp Fuse: To protect the shift motor from potential overload.
- Appropriate Wiring: For connecting the switch, motor, and power source.
- Basic Hand Tools: Including wire cutters, strippers, and electrical tape for secure connections.
Having these items on hand will ensure a smooth process in bypassing your ATV’s electric shift system.
Safety precautions to consider
The steps to bypass electric shift involve handling electrical components, which requires careful attention to safety precautions. To ensure a smooth and safe process, consider the following:
- Disconnect the battery – Prevent any electrical accidents by disconnecting the battery before starting.
- Wear protective gear – Use gloves and eye protection to avoid injuries.
- Check for a clean, dry workspace – Ensure your working area is free from moisture to prevent electrical shocks.
- Double-check connections – Before reconnecting the battery, make sure all connections are secure to avoid short circuits.
Pre-bypass checklist
Before you start to bypass electric shift or override the electric gear selector, it’s crucial to have everything you need at hand. This not only saves time but also ensures a smoother process.
Here’s a quick checklist:
- Double Throw Double Pole Momentary Switch
- 30 amp fuse
- Suitable wiring for connections
- Tools for installation (screwdriver, wire stripper, etc.)
Having these items ready ensures you’re prepared to tackle the job efficiently. Remember, the goal is to safely bypass the electric shift and have full control over your gear selection, so double-check this list before you dive in.
Step-by-Step Guide to Bypassing the Electric Shift on a Honda Rancher 420
If you’re ready to tackle the electric shift bypass on your Honda Rancher 420, you’ll need clear, step-by-step instructions to guide you through.

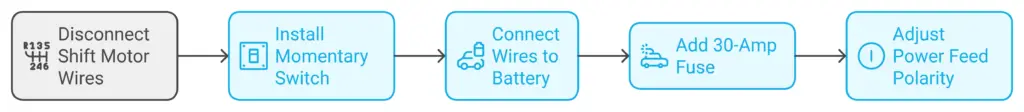

Detailed instructions for bypassing the electric shift
Step 1: Begin by disconnecting the shift motor wires from the ECU to initiate the process of bypassing the electric shift system on your Honda Rancher 420.
Step 2: Install a double throw double pole momentary switch on the handlebar near your thumb to ensure easy access during operation.
Step 3: Connect the shift motor wires directly to the battery, incorporating a 30-amp fuse within the circuit to safeguard the motor from any potential electrical damage.
Step 4: Adjust the power feed polarity to the switch to control the direction in which the shift motor spins, allowing for manual shifting.
Tips for a successful bypass
When you’re modifying the shift motor and bypassing the electric shift, keep these tips in mind:
- Confirm the shift motor is operational before starting. If it’s not, bypassing won’t solve your issue.
- Use high-quality electrical wires and connectors to prevent future failures.
- Install a durable double throw double pole momentary switch that can withstand outdoor conditions.
- Ensure all connections are secure and insulated to avoid short circuits.
Troubleshooting common issues during the bypass process
During the bypass process on your Honda Rancher 420, you might encounter a few common issues that can usually be resolved with some troubleshooting steps.
- Check Connections: Ensure all wires connected for bypassing the electric shift system are secure and properly installed.
- Fuse Inspection: A blown fuse can halt the process. Verify the 30 amp fuse is intact to protect the shift motor.
- Shift Motor Functionality: If overriding the ECU shift motor isn’t working, test the shift motor separately to confirm it’s operational.
- Switch Operation: Make sure the installed double throw double pole momentary switch is functioning correctly. A faulty switch can prevent successful bypassing.
Addressing these concerns should help smooth out any bumps during the bypass process.
Why Consider Bypassing the Electric Shift on Your Honda Rancher 420?
Bypassing the electric shift on a Honda Rancher 420 can enhance reliability and control.
Many owners face issues with the electric shift system, such as non-responsiveness or persistent error codes, which hinder the ATV’s performance.
Bypassing this system allows for manual gear shifting, providing a more dependable and responsive ride, especially in remote or challenging environments.
This modification improves the ATV’s performance by ensuring smoother operation and greater rider control, free from electronic system failures.
Pros and Cons of Bypassing the Electric Shift
Bypassing the electric shift on your Honda Rancher 420 comes with its own set of advantages and drawbacks. While this approach might seem like a straightforward fix, especially if you’re in a bind, it’s important to weigh both sides before modifying your shift motor.
Here’s a quick breakdown to help you make an informed decision:
| Pros | Cons | Considerations |
|---|---|---|
| Restores shift functionality | Potentially voids warranty | Ensure your shift motor is operational |
| Empowers manual control and customization | Requires technical skill to install | Familiarize yourself with the electrical system |
| Can be cost-effective compared to replacements | May introduce reliability issues | Use a high-quality switch and proper wiring |
| Bypasses problematic ECU shift motor issues | Could lead to unexpected gear shifts | Test thoroughly before regular use |
| Immediate solution to a non-functional system | Might affect resale value | Keep original parts for possible reversal |
Alternatives to Bypassing the Electric Shift
These options are designed to address issues without resorting to bypassing the electric shift mechanism or modifying the gear position sensor.
Here are four practical alternatives to consider:
- Regular Maintenance and Inspection: Sometimes, the issues with the electric shift can be resolved by simple maintenance. Ensure that all connections are clean, tight, and free of corrosion. Regular checks can prevent many problems before they start.
- Software Updates: Check if there are any software updates available for your Honda Rancher 420. Manufacturers sometimes release updates that can fix known issues, including those related to the electric shift system.
- Professional Diagnostic: If you’re not comfortable troubleshooting the system yourself, consider taking your Honda Rancher 420 to a professional. They can perform a comprehensive diagnostic to pinpoint the exact issue. Often, the problem might be less severe than it appears and can be fixed without bypassing any systems.
- Replacement Parts: In some cases, replacing a faulty component is a better option than attempting to bypass it. This could involve replacing sensors, wiring, or even the shift motor itself. Ensure you use genuine or high-quality aftermarket parts for the best results.
Maintaining Your Honda Rancher 420 After Bypassing the Electric Shift
After you’ve bypassed the electric shift on your Honda Rancher 420, it’s essential to maintain the ATV to ensure it continues to operate smoothly. Bypassing the electric shift system and modifying the gear position sensor are significant changes that require you to pay extra attention to your vehicle’s upkeep.
Here are four key maintenance steps to keep in mind:
- Regularly Check Electrical Connections: After modifying the gear position sensor and bypassing the electric shift system, ensure all electrical connections, especially those you’ve altered, are secure and free from corrosion. Loose or corroded connections can lead to shifting problems or electrical failures.
- Monitor the Shift Motor: The shift motor will now be directly controlled by the new switch setup. Regularly test the shift motor’s operation to catch any signs of wear or failure early. If the motor begins to act up, address it promptly to avoid being stuck in one gear.
- Inspect the Fuse: You’ve added a 30 amp fuse to protect the shift motor during the bypass. Make it a habit to check this fuse periodically for any signs of wear or potential failure. A blown fuse is an early warning sign that there could be an underlying issue with the electrical modifications.
- Keep an Eye on Gear Position Readings: If you’ve modified the gear position sensor to work with the bypass, monitor its accuracy closely. Incorrect gear readings can lead to operational errors and potential damage to the transmission.
Maintaining your Honda Rancher 420 after these modifications requires a vigilant eye on these aspects to ensure your ATV remains reliable and ready for any adventure.
FAQs
Can bypassing the electric shift void my warranty?
Yes, bypassing the electric shift on your Honda Rancher 420 can void your warranty. Unauthorized modifications affect the vehicle’s original system, leading to potential loss of warranty coverage.
This is because tampering with the electric shift system can impact the overall functioning of the vehicle and may cause issues down the line. It’s always best to consult with a certified technician before making any modifications to ensure the warranty remains valid.
How long does it take to bypass the electric shift system?
Bypassing the electric shift system on a Honda Rancher 420 typically takes a few hours.
This requires technical skill, understanding of the vehicle’s electrical system, and precise execution of tasks like modifying the gear position sensor and rerouting electrical connections.
Is it possible to bypass the electric shift without professional help?
Yes, bypassing the electric shift on a Honda Rancher 420 is achievable with mechanical knowledge and the right tools.
This DIY method involves rerouting power to manually override the electric gear selector, allowing gear shifts with a custom switch.
Wrapping Up
Wrapping up, bypassing the electric shift on your Honda Rancher 420 isn’t just a quick fix; it’s a smart way to tackle shifting woes head-on.
You’ve learned how to prepare, the step-by-step process, and weighed the pros and cons.
Always remember, while this workaround offers a fresh lease on gear shifting, it’s crucial to keep up with regular maintenance.
Here’s to smoother shifting and uninterrupted adventures on your Rancher 420!
